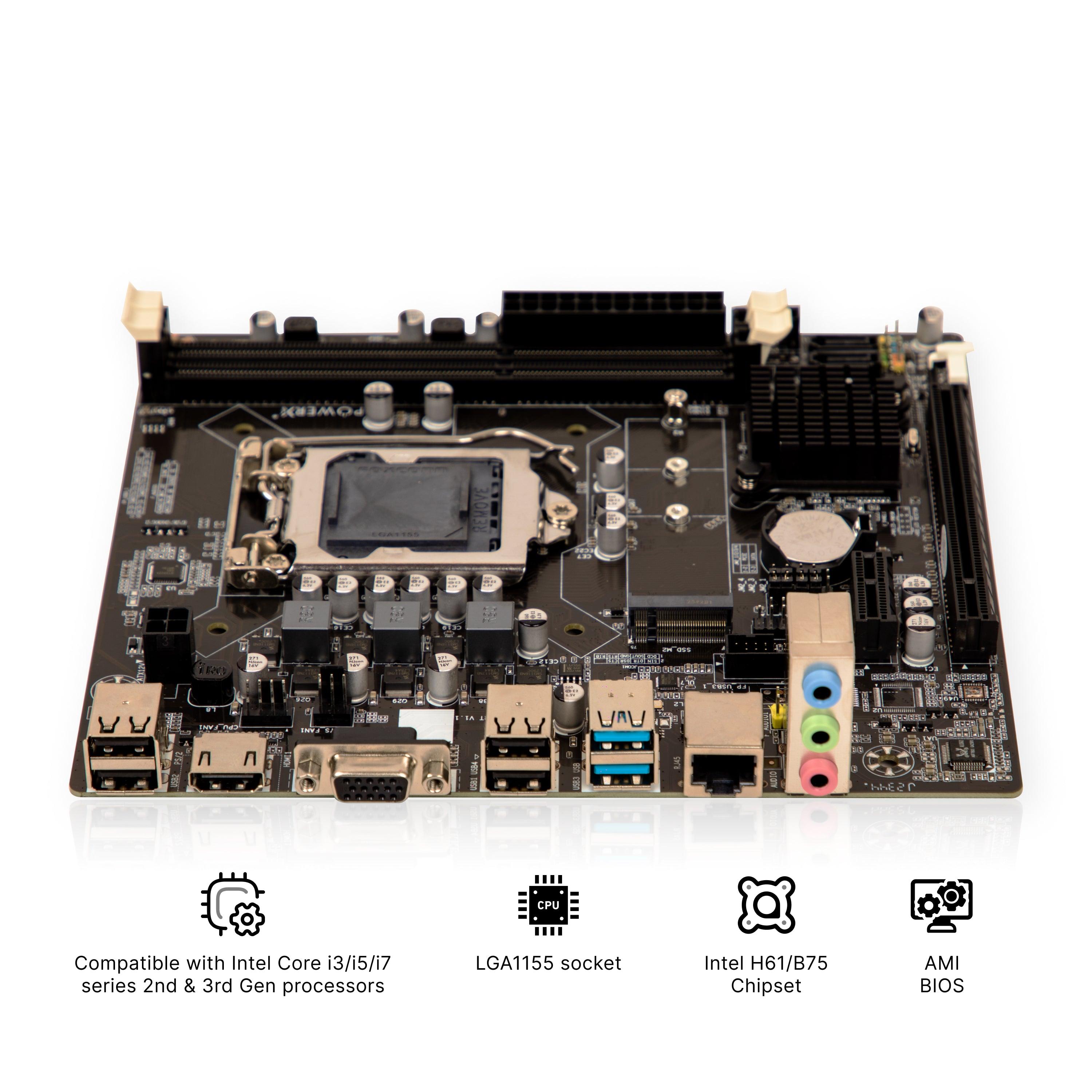

Processor Supports: Compatible with Intel Core i3/i5/i7 series 2nd & 3rd Gen processors, offering powerful performance for a wide range of computing tasks.
CPU Socket: Features LGA1155 socket, providing a stable and reliable connection for Intel processors.
Chipset: Equipped with Intel H61/B75 chipset, ensuring efficient data handling and system stability.
Memory: Offers 2 x 240-pin DDRIII slots supporting up to 16GB of dual-channel DDRIII memory with speeds of 1066/1333/1600MHz, enabling smooth multitasking and responsiveness.
BIOS: Utilizes an AMI BIOS for easy system configuration and setup.
I/O Interface: Provides PS/2, HDMI, VGA, DVI, 4 x USB2.0, 2 x USB3.0 (H61 chipset converts USB3.0 to USB2.0), RJ45, and Audio port interfaces for seamless connectivity with various devices.

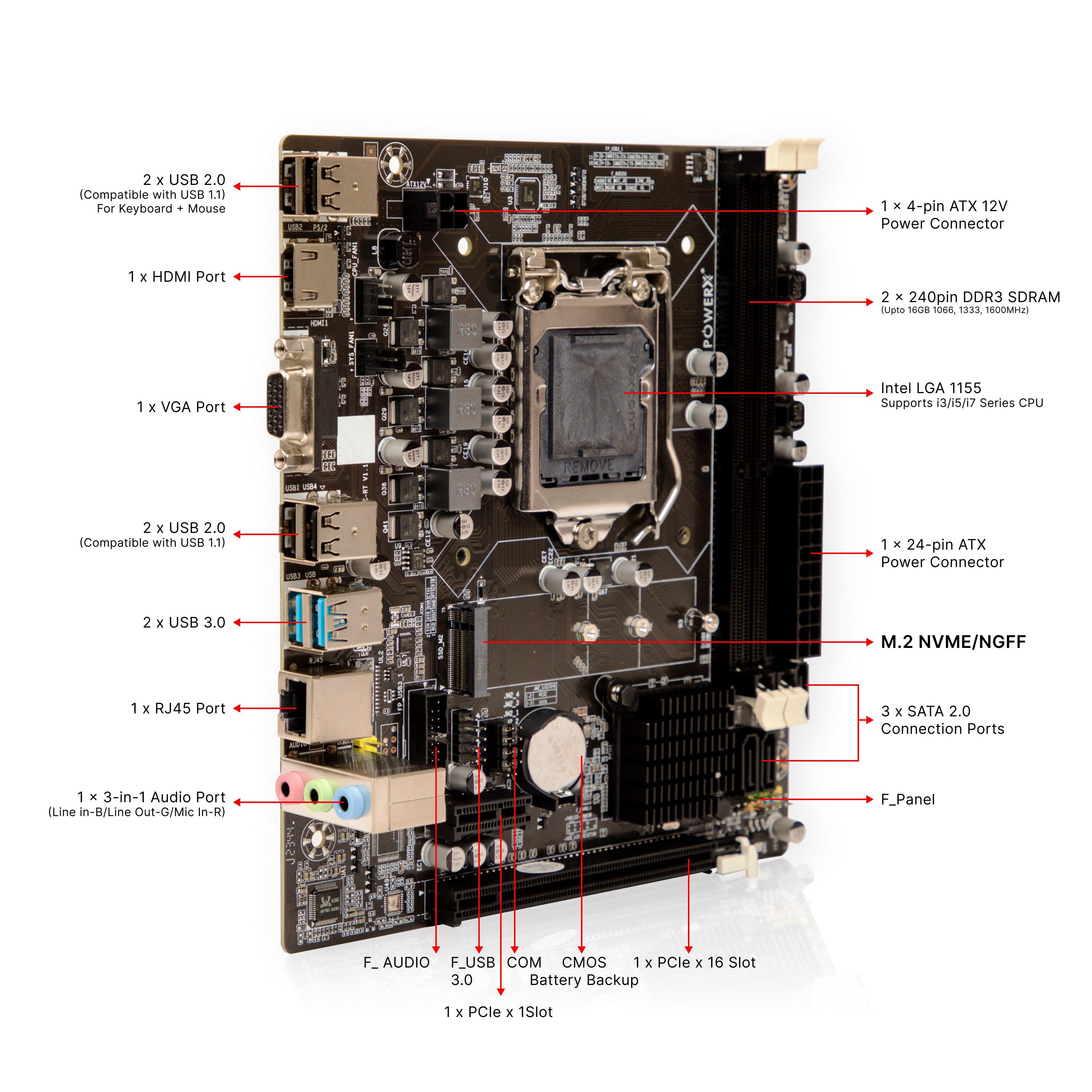

Onboard Interface: Includes 24-pin ATX, 8-pin ATX 12V, 2 x USB connectors (4USB 2.0, 2USB 3.0), F_AUDIO, F_PANEL, SPEAKER, 2 x FAN, 3 x SATA, COM interfaces for enhanced functionality and expandability.

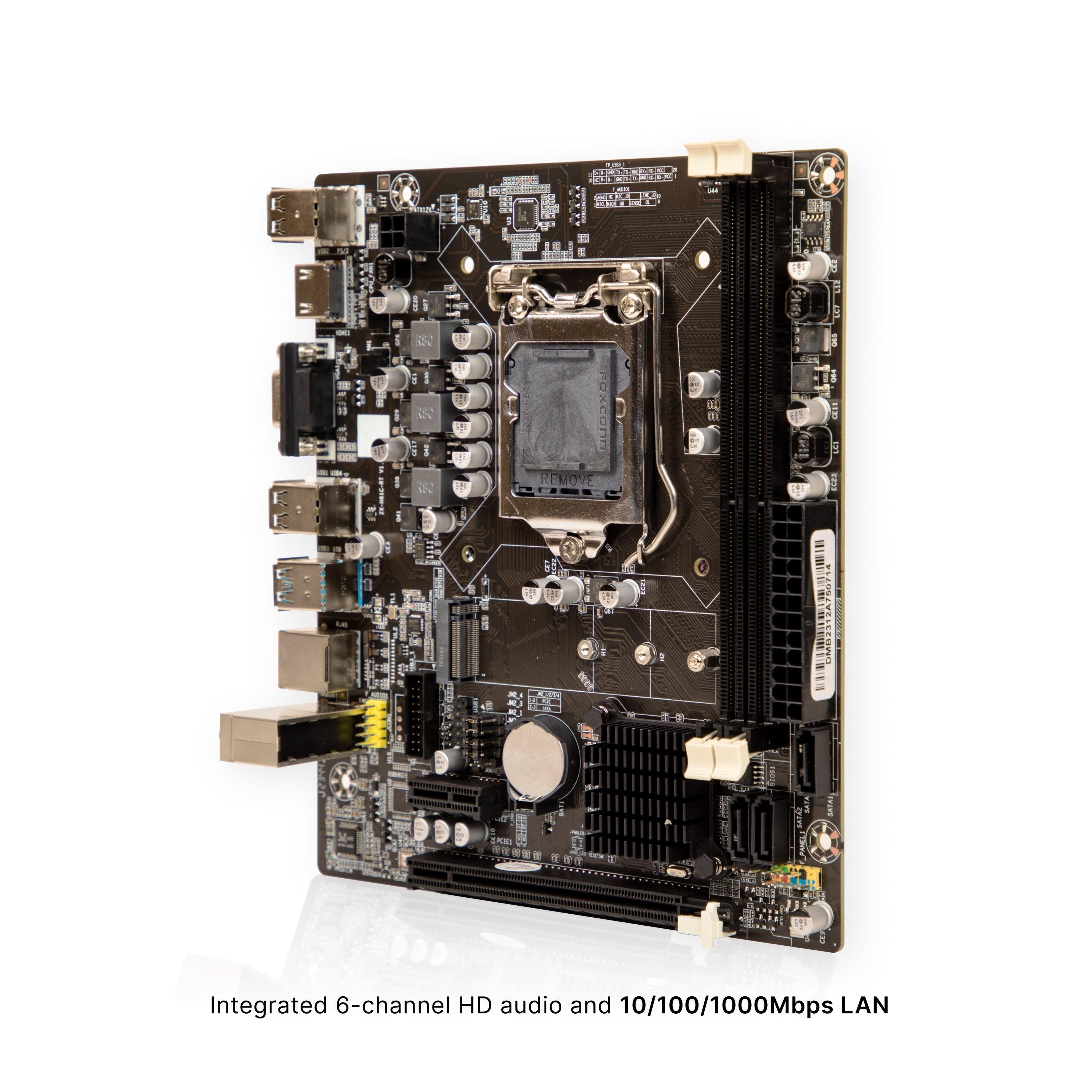

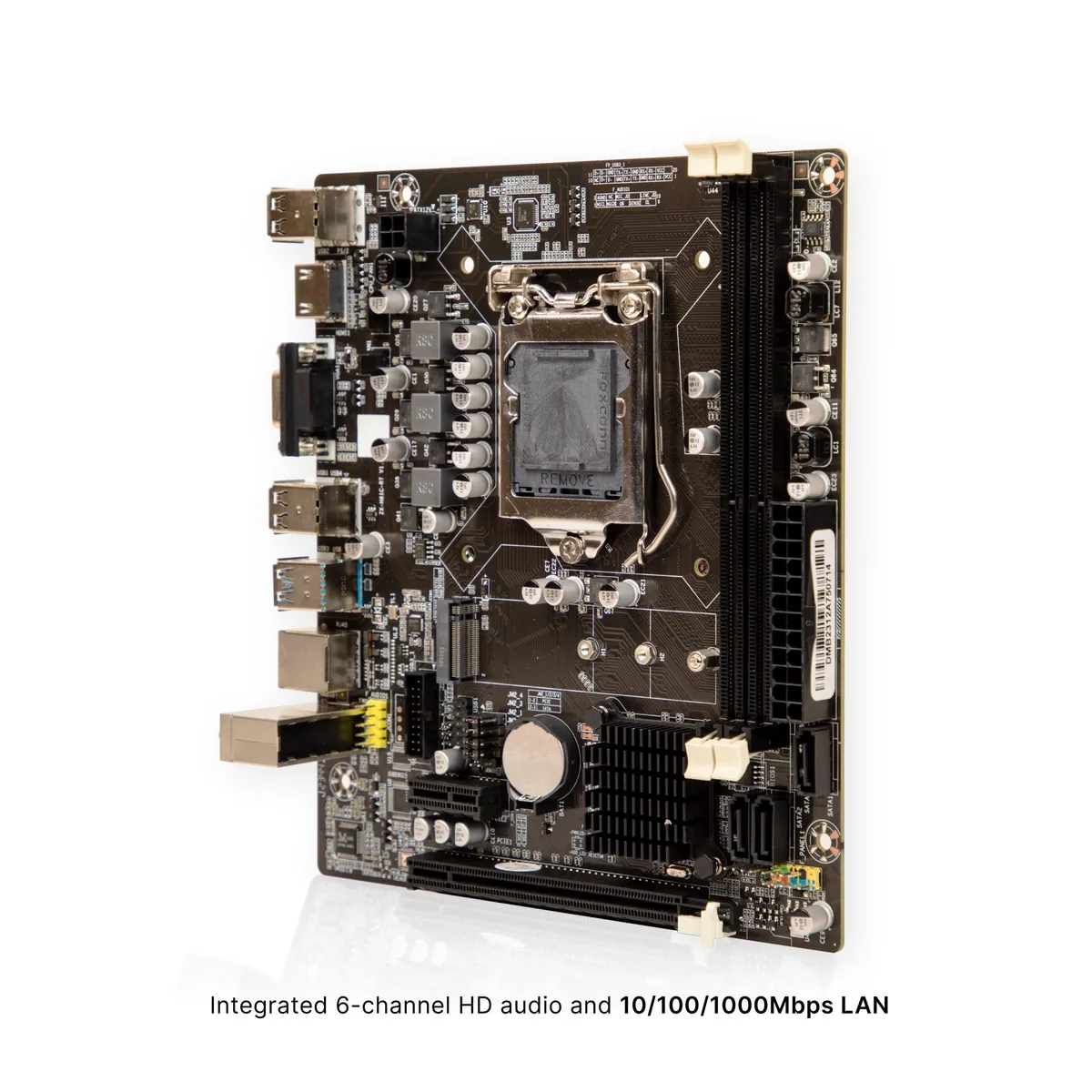

Integrated Features: Features a 6-channel HD Audio Codec, Front audio interface, and Front stereo mic interface for improved audio quality and connectivity.
Integrated LAN: Optional integrated 10/100/1000 Mbps LAN onboard for efficient networking capabilities.
Expansion Slots: Offers 1 x PCI Express x16, 1 x PCI Express x1, and 1 x M.2 expansion slots for easy integration of additional components such as graphics cards, network cards, and storage devices.

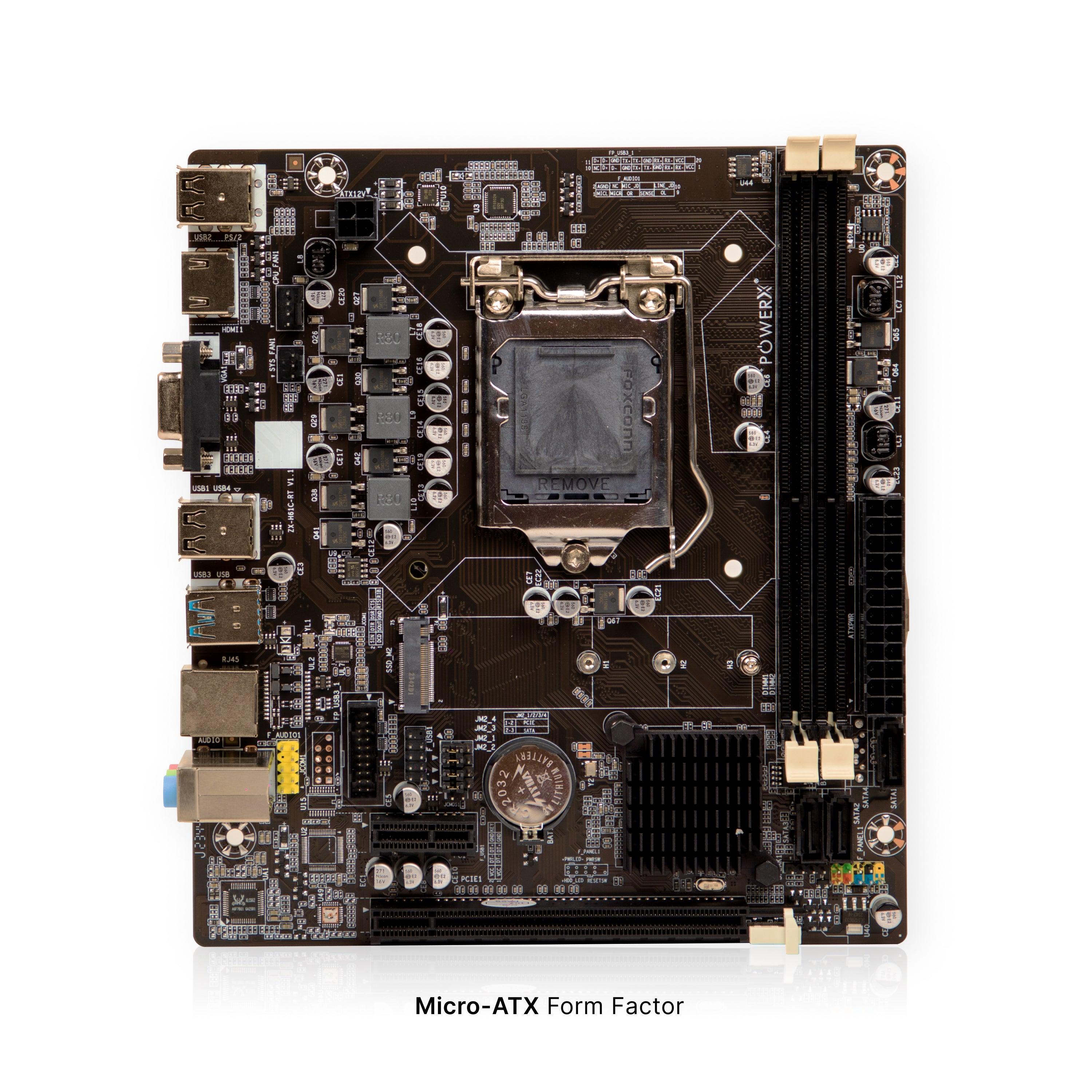

Dimension: Adheres to a Micro-ATX form factor, measuring 17 x 21.5 cm, providing a compact yet feature-rich platform for various system configurations.
Download Drivers: Click Here
