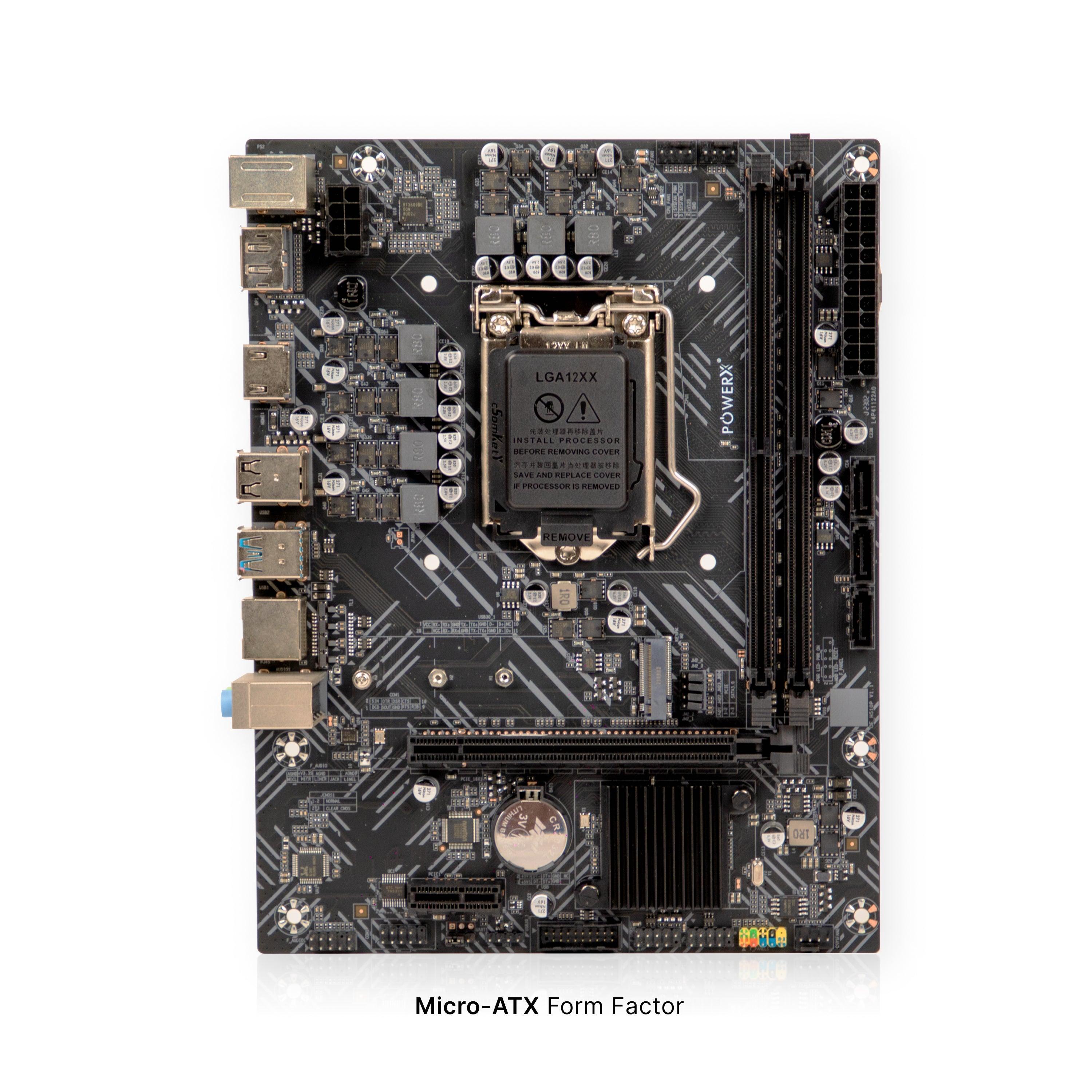

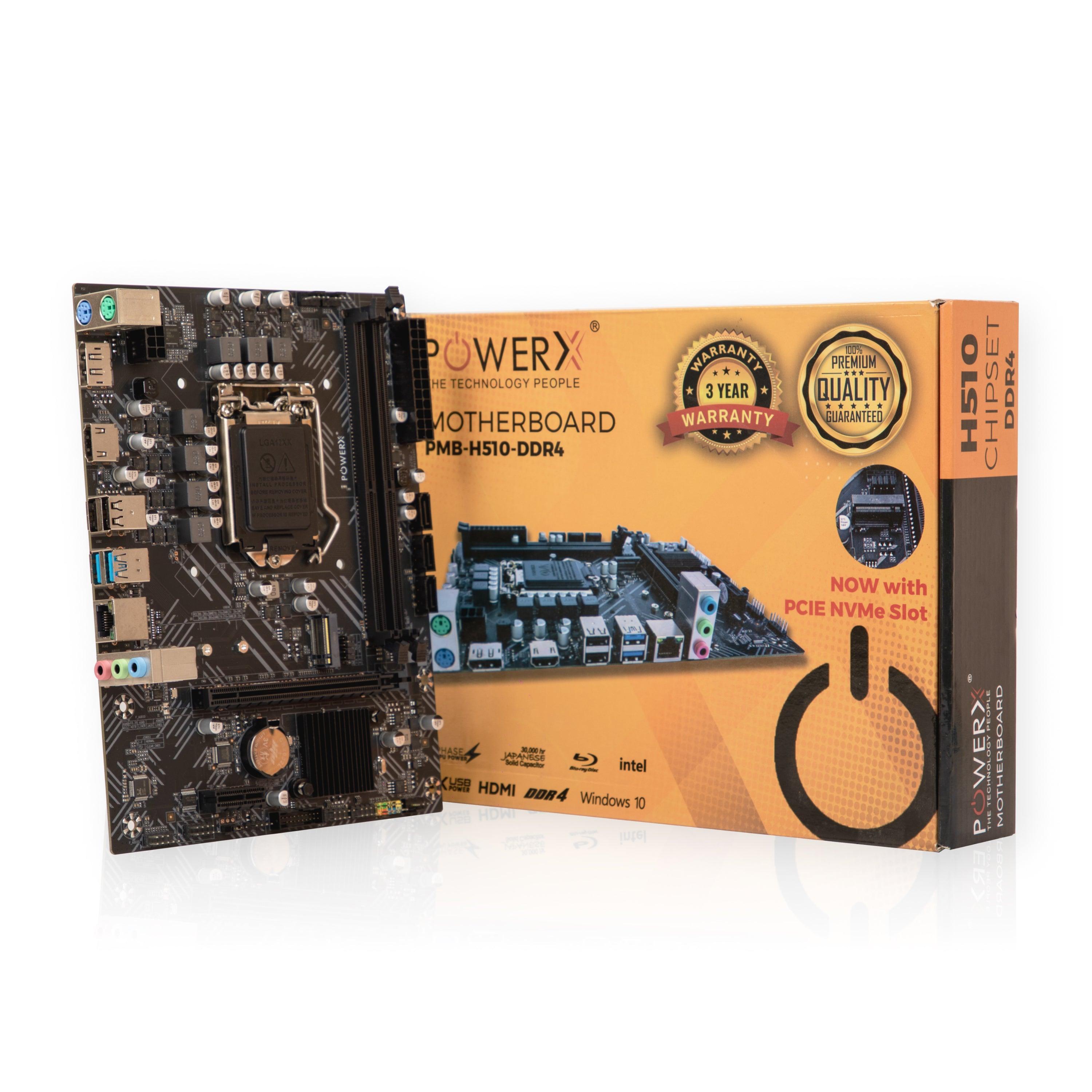

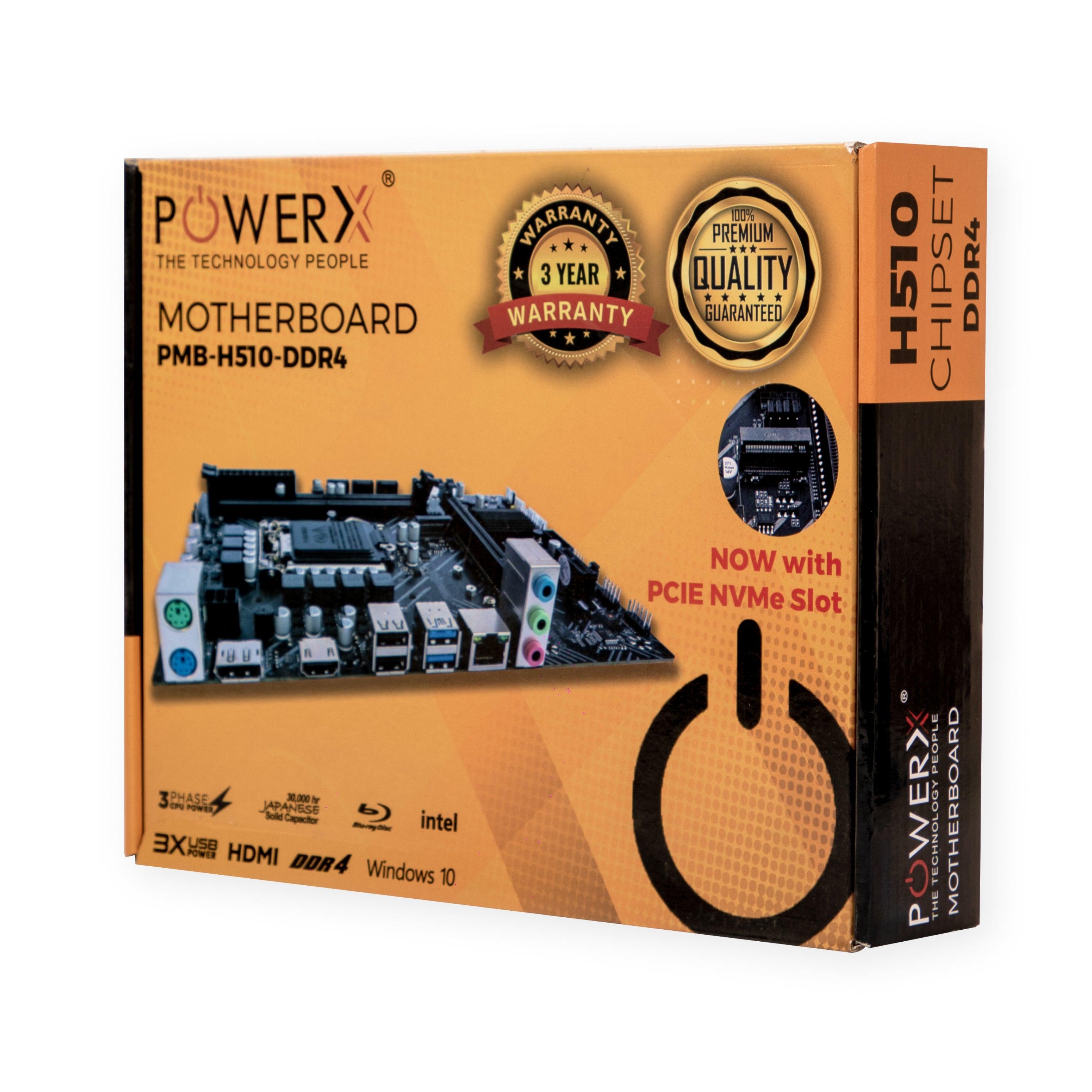

PMB-H510-DDR4 MOTHERBOARD

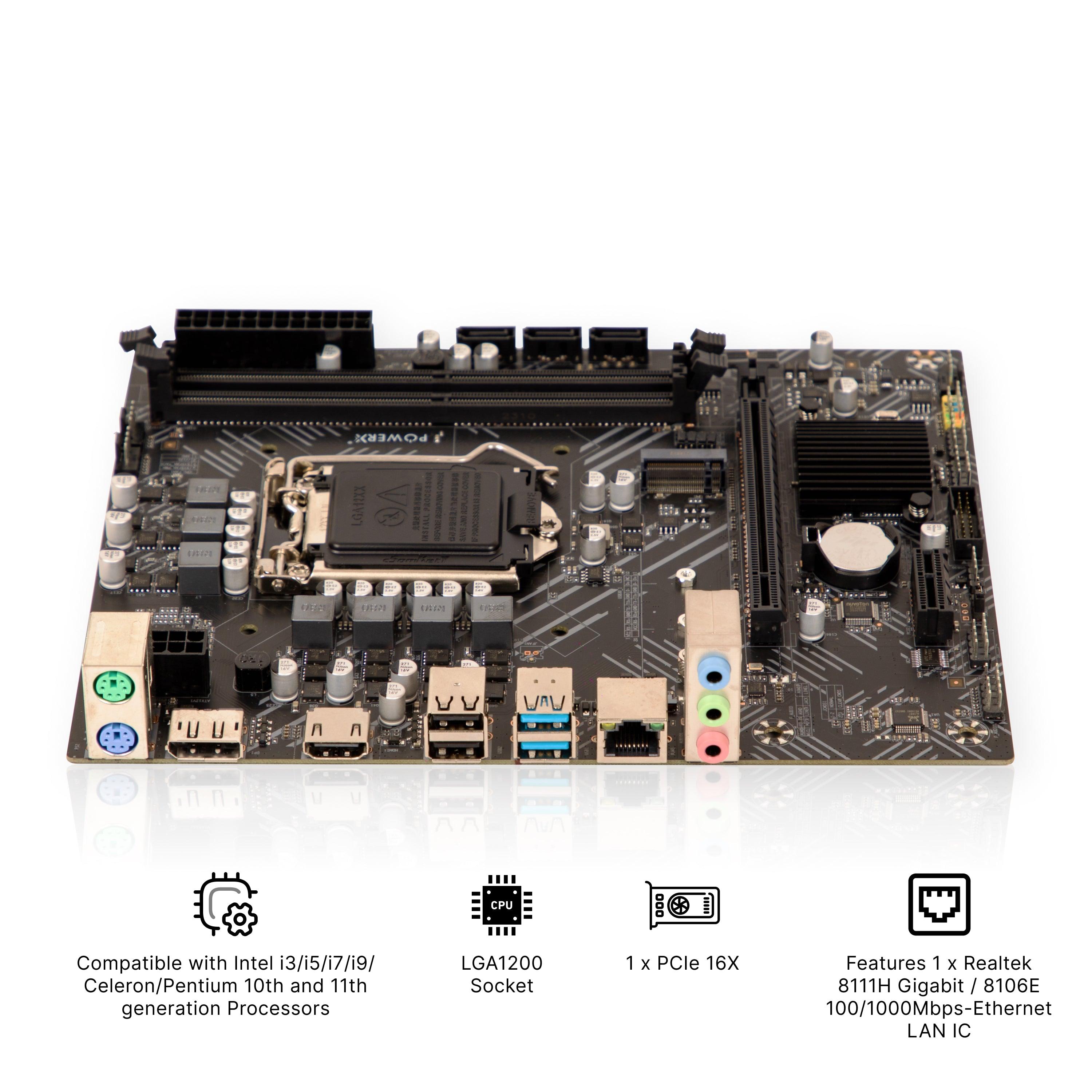

Processor Supports: Compatible with Intel i3/i5/i7/i9/Celeron/Pentium 10th and 11th generation processors, ensuring high performance and versatility for various computing tasks.

CPU Socket: Features Intel LGA1200 socket for 10th and 11th gen CPUs, providing seamless compatibility and reliable connectivity for enhanced system performance.

Memory: Equipped with 2 x DDR4 DIMM slots supporting up to 3200MHz frequency and a maximum capacity of 64GB (single slot max 32GB), enabling smooth multitasking and efficient data processing.

Storage: Includes 1 x M.2 (NVME/NGFF) slot and 3 x SATA3.0 ports for flexible storage options and fast data transfer speeds.

USB Ports: Offers 4 x USB3.0 and 6 x USB2.0 ports for convenient connectivity with various peripherals and devices, ensuring seamless data transfer and device compatibility.

Display Ports: Features 1 x DisplayPort and 1 x VGA port for versatile display options and multi-monitor setups.

Graphics Card Slot: Provides 1 x PCIe-16X slot for installing a dedicated graphics card, allowing for enhanced graphics performance and gaming capabilities.

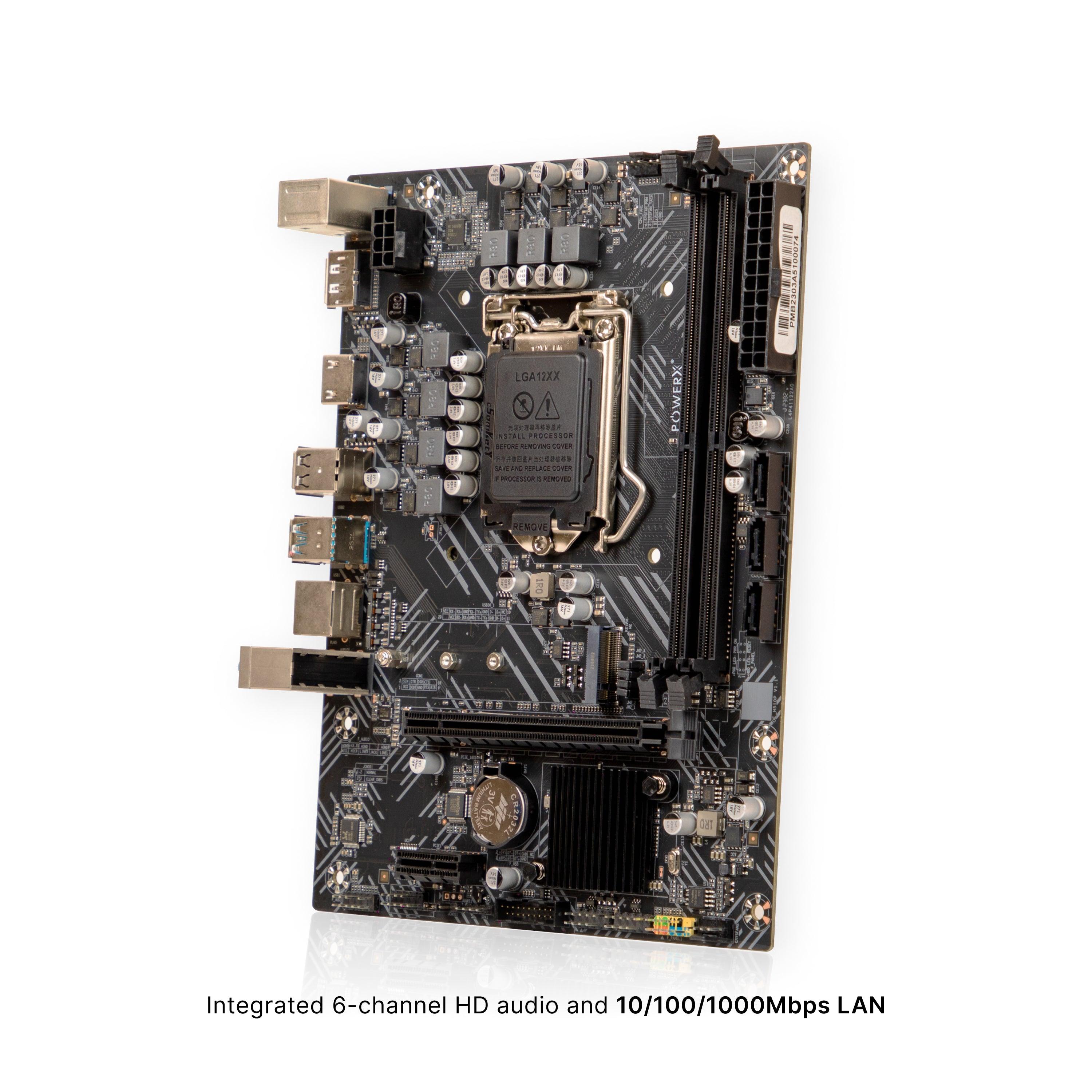

Audio: Utilizes Realtek ALC Series Hi-Fi Audio for high-quality audio output and immersive sound experience.

LAN: Includes 1 x Realtek 8111H/8106E 100/1000Mbps LAN port for reliable and high-speed network connectivity.

Power Supply: Equipped with 1 x 24PIN ATXPWR and 1 x 8PIN ATX12V power connectors for stable and efficient power delivery to the motherboard.

Working Environment: Designed to operate within a wide temperature range of -20°C to 60°C and 0-95% relative humidity, ensuring reliable performance in various environmental conditions without condensation.

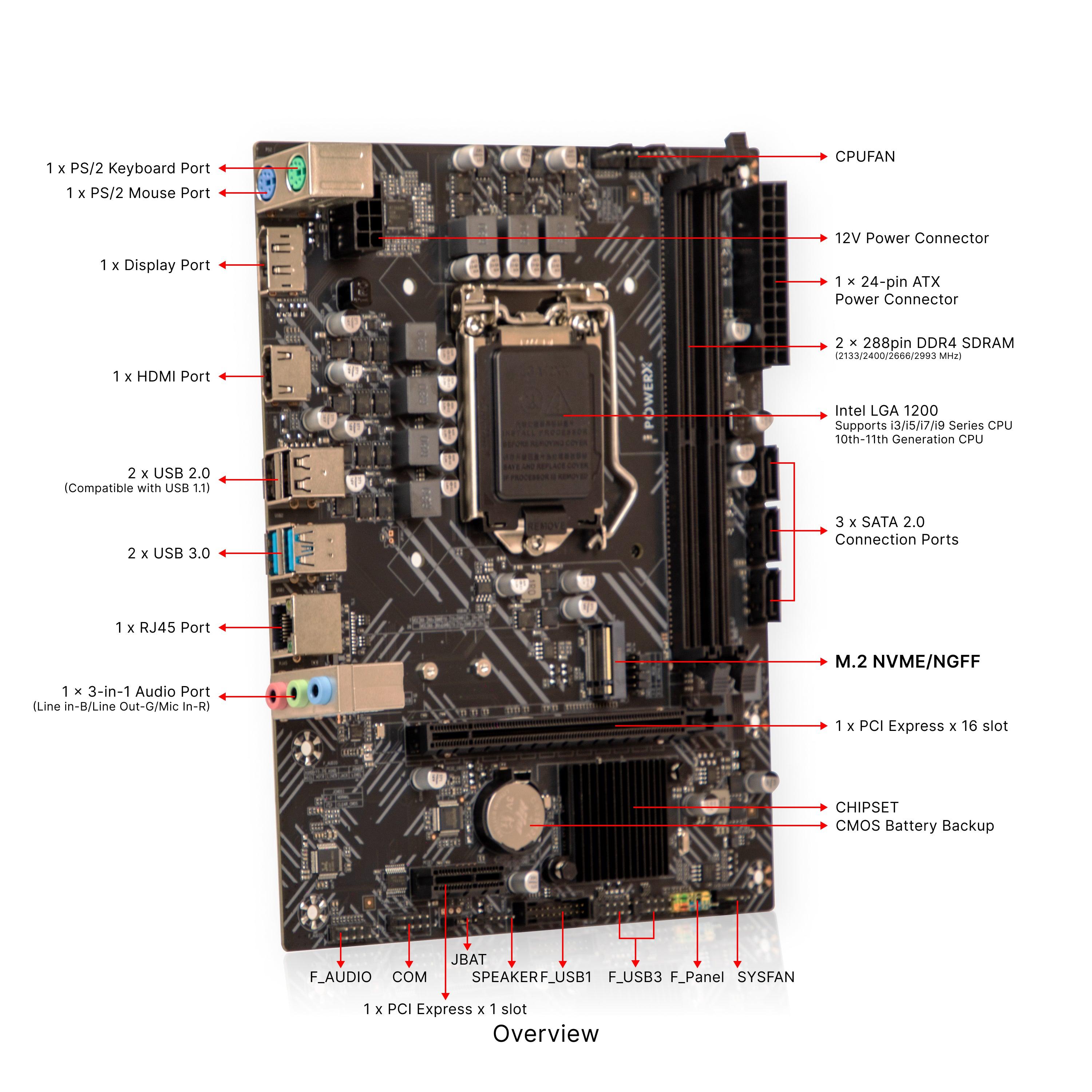

Onboard: Features onboard components including 24-pin ATX, 8-pin ATX 12V, USB, F_AUDIO, F_PANEL, SPEAKER, FAN, SATA, and COM interfaces for expanded functionality and connectivity options.

Download Drivers: Click Here
